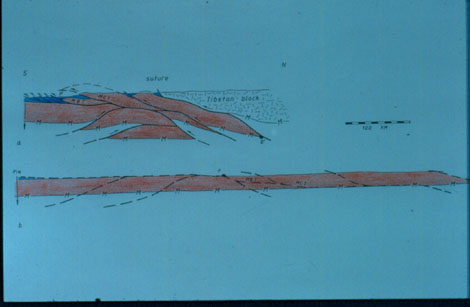

Balanced cross section of the Himalaya. The lower section, which represents the undeformed
state of the Himalatan rocks, was reconstructed from the pieces in the upper section. The
shortening can be obtained with the length of the lower section as the original length
and the distance from the left side of the upper section to the point of the
red unit on the right as the deformed length. Sections drawn by Rob Butler
